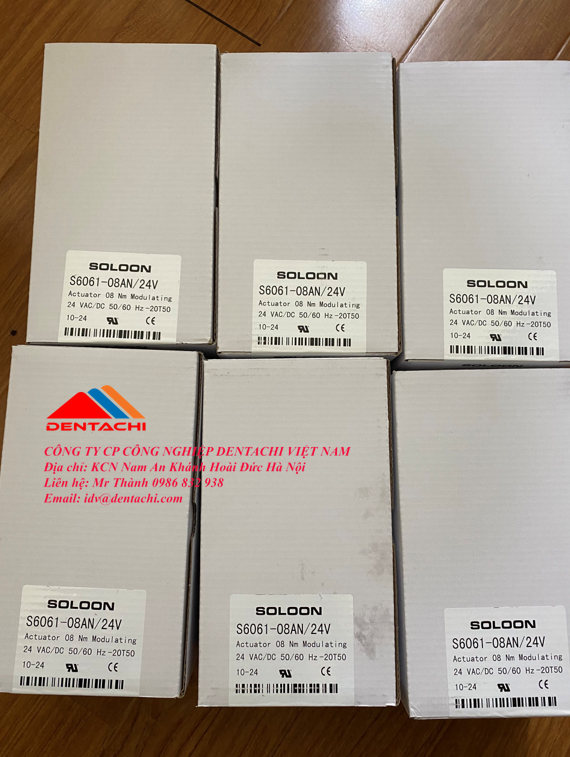

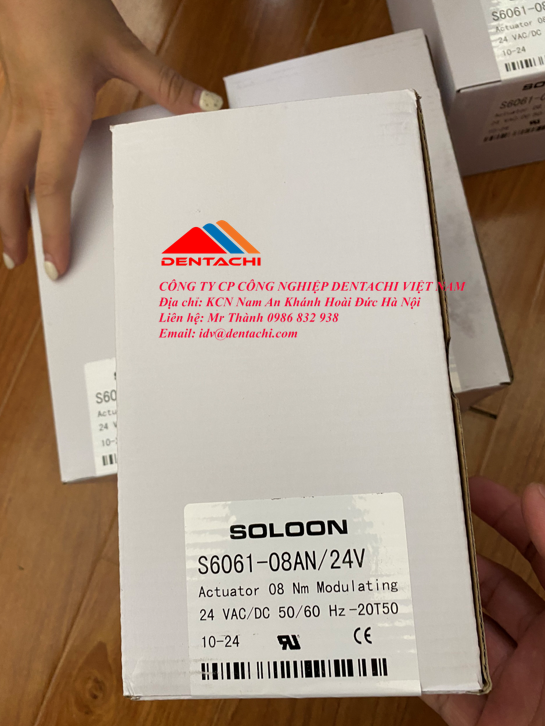

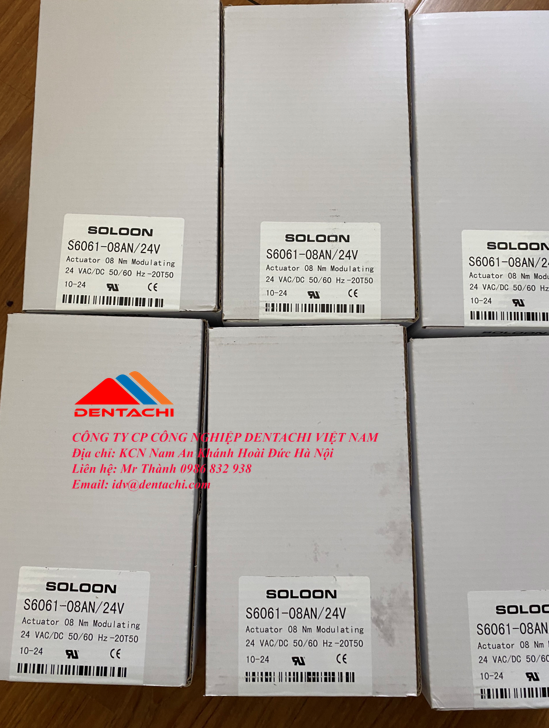

Rotary Damper Actuator S6061-08AN/I/24V

Specifications

S6061-(08~24) Modulating damper actuator

Summary:

The damper actuator is specially designed for small and middle air damper and terminal control unit of air volume system. Due to the small size and flexible control, usually used in the space where is limited.

Features:

l Controllable by 0…10V

l Setting the independent running time

l Screw terminal connection

l Universal adapter: circular shaft: max φ20mm, square shaft: max 16*16mm

l Adjustable angle of rotation

l Manual override function

l With 2 auxiliary switches

l With Pre-set up function

Technical datesheet:

Item	Unit	S6061-08A	S6061-16A	S6061-24A
Torque	Nm	8	16	24
Damper area	m2	2	4	6
Running time	sec	30~40	72~88	117~143
Power supply	V	24VAC/DC；230VAC；110VAC
Frequency	Hz	50/60
Running consumption	W	4.0W（24V）；4.8W（230V）
Maintaining consumption	W	0.7W（24V）；1.0W（230V）
Weight	Kg	1.1
Control signal		0(4)…20mA 0(2)…10V
Position signal		potentiometer
Rotation angle		0～90º（max 93°）
Limited angle		5～85º（per step 5º）
Auxiliary switch rating		3（1.5）Amp 250V
Life cycle		>70000 cycles
Noise level		45dB(A)
Electrical level		Ⅱ
Protection level		IP44 or IP54
Temperature		-20~+50℃
Humidity		5~95%RH
Storage temperature		-40~+70℃
Certificate		CE UL（Except 230V）
